Kennametal HNPJ43ANSNGD KCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.175 Thick 4119700 – 73617920

Kennametal HNPJ43ANSNGD KCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.175 Thick 4119700 – 73617920

Original price was: $32.12.Current price is: $25.70.

  • Check Mark Satisfaction Guaranteed
  • Check Mark Easy Returns
  • Check Mark Secure Payments
  • Check Mark Exclusive Deals
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
  • Visa Card
SKU: 7.361792E7 Category:

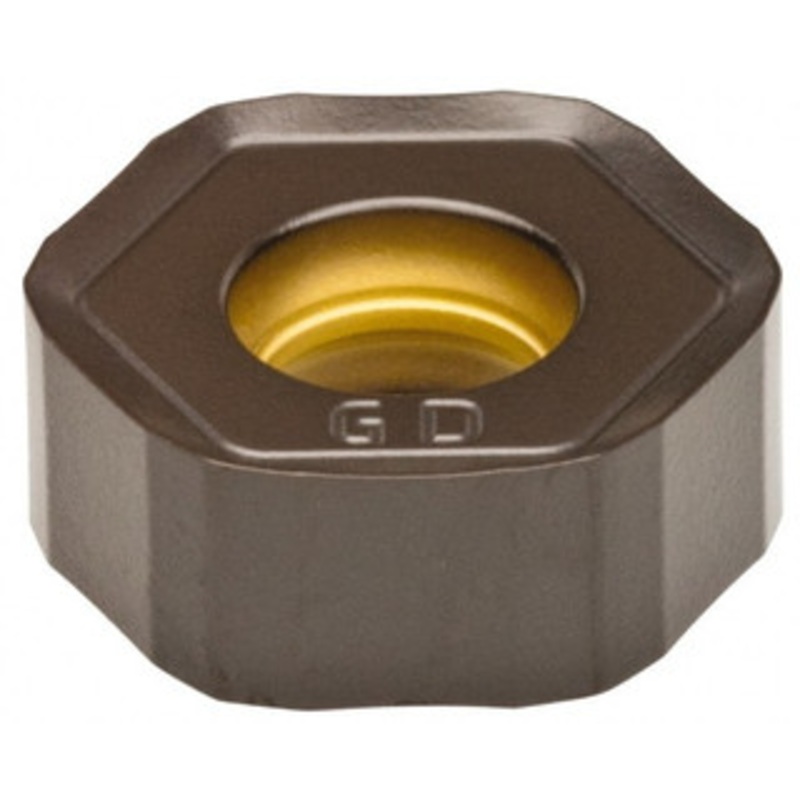

Kennametal HNPJ43ANSNGD KCPK30 Carbide Milling Insert TiN/TiCN/Al2O3 Finish, 0.175″ Thick

Manufacturer Part #: 4119700

S/N: 73617920

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style HNPJ Insert Size 4 Insert Material Solid Carbide Insert Shape Hexagon Manufacturer Grade KCPK30 Corner Radius (Decimal Inch) 0.0394 Number Of Cutting Edges 12 Thickness (Decimal Inch – 4 Decimals) 0.1750 Coating/Finish TiN, TiCN, Al2O3 Relief Angle 0.00 Insert Size Code 43 Material Grade C1, C5, C6 Inscribed Circle (Decimal Inch) 0.4724 Inscribed Circle (mm) 12.00 Thickness Range (Decimal Inch) 0.1750 to 0.1850 Inscribed Circle Range (Decimal Inch) 0.4000 to 0.5000 Length Range (Decimal Inch) 0.4500 to 0.5000 Insert Hand Neutral Series HNPJ Coating Process CVD Rake Negative Primary Workpiece Material Steel, Stainless Steel, Cast Iron, Superalloys & Titanium Primary Workpiece Material Code P, M, K, S Ansi Code HNPJ43ANSNGD Iso Code HNPJ0604ANSNGD Standards ANSI, ISO Cutting Edge Style Chamfered, Honed Manufacturers Catalog Number HNPJ0604ANSNGD Cutter Series Compatibility Dodeka Chip Breaker GD Material Application Steel, Stainless Steel, Cast Iron, Superalloys & Titanium UNSPSC Code 23291601 Insert Holding Method Screw Coating Classification CVD Single or Double Sided Insert Double Included Angle Degree 120 Width (Decimal Inch – 4 Decimals) 0.4724 Multi-Use Tool Yes Length (Decimal Inch – 4 Decimals) 0.4724
