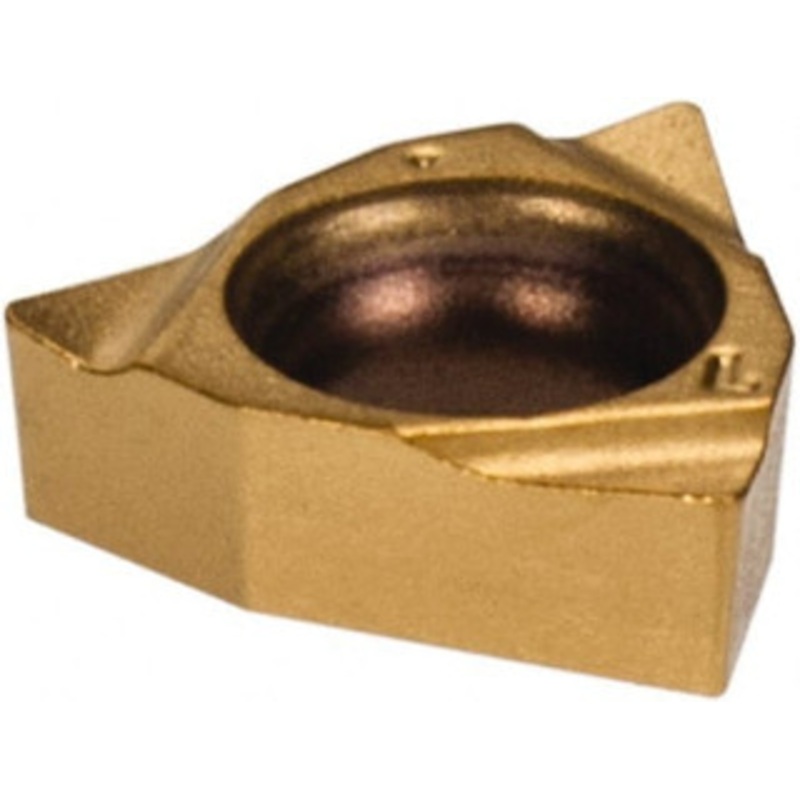

Iscar WBMT 520L IC-530N Cermet Turning Insert TiCN/TiN Finish, 2.18mm Long, 5/32 Inscribed Circle, 0.0079 Corner Radius, 1/16 Thick, 80 Trigon, Series Isoturn 5503223 – 52742269

Iscar WBMT 520L IC-530N Cermet Turning Insert TiCN/TiN Finish, 2.18mm Long, 5/32 Inscribed Circle, 0.0079 Corner Radius, 1/16 Thick, 80 Trigon, Series Isoturn 5503223 – 52742269

Original price was: $24.33.Current price is: $19.46.

  • Check Mark Satisfaction Guaranteed
  • Check Mark Easy Returns
  • Check Mark Secure Payments
  • Check Mark Exclusive Deals
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • PayPal
  • Visa Card
SKU: 5.2742269E7 Category:

Iscar WBMT 520L IC-530N Cermet Turning Insert TiCN/TiN Finish, 2.18mm Long, 5/32″ Inscribed Circle, 0.0079″ Corner Radius, 1/16″ Thick, 80 Trigon, Series Isoturn

Manufacturer Part #: 5503223

S/N: 52742269

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style WBMT Insert Size Code 520 Insert Material Cermet Manufacturer Grade IC530N Inscribed Circle (Inch) 5/32 Inscribed Circle (Decimal Inch) 0.1563 Maximum Depth of Cut (mm) 2.00 Maximum Depth of Cut (Decimal Inch) 0.0787 Insert Holding Method Screw Insert Hand Left Hand Corner Radius (Decimal Inch) 0.0079 Relief Angle 5 Chipbreaker T Series Isoturn Coating Process PVD Included Angle 80 Insert Shape Trigon Primary Workpiece Material Stainless Steel, Steel Primary Workpiece Material Code M, P Iso Code ISO 13399 Standards ISO 13399 Length (Decimal Inch – 4 Decimals) 0.0858 Coating/Finish TiCN, TiN UNSPSC Code 23242105 Length (mm) 2.18
